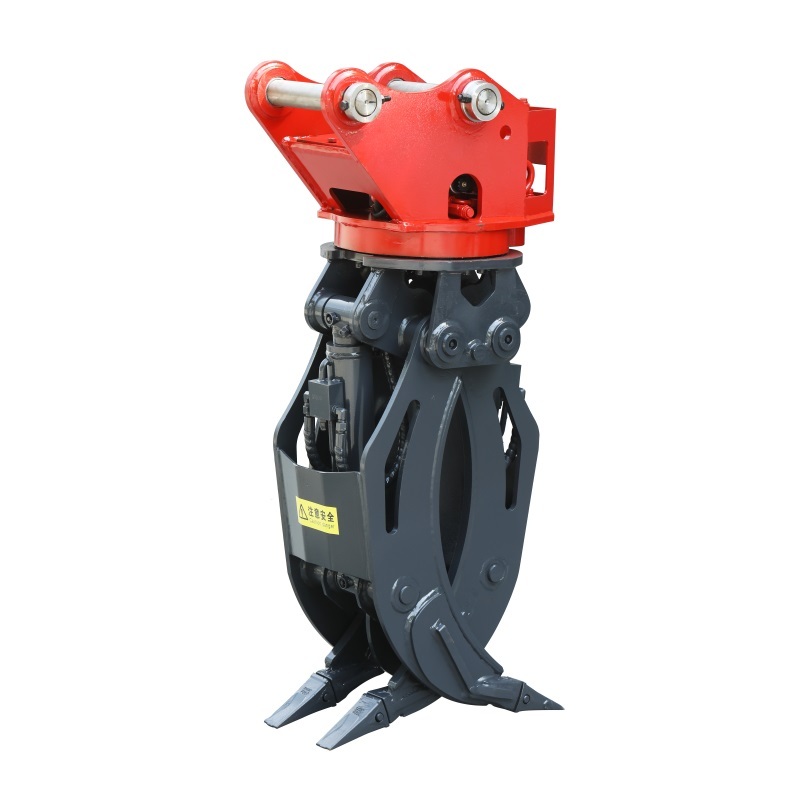

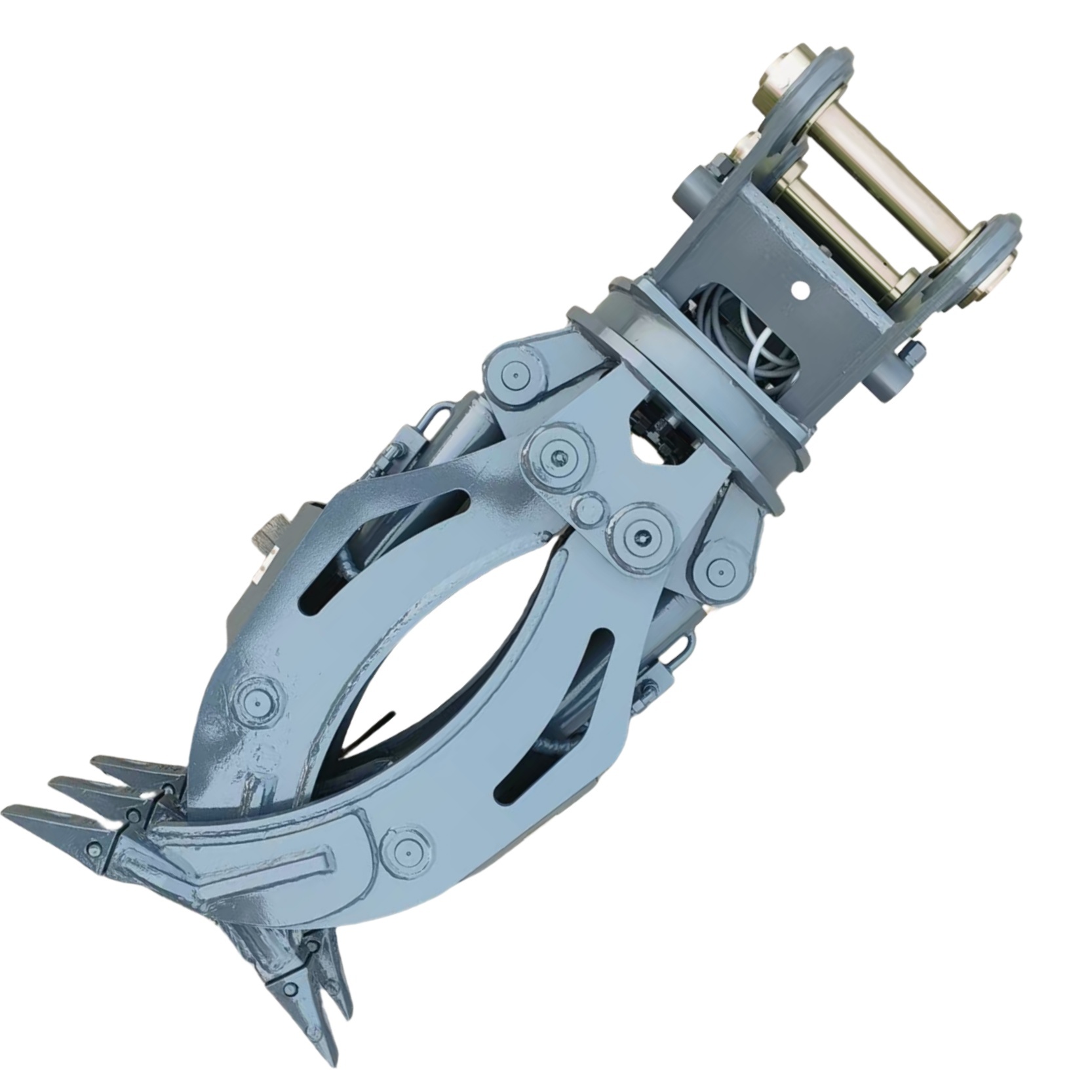

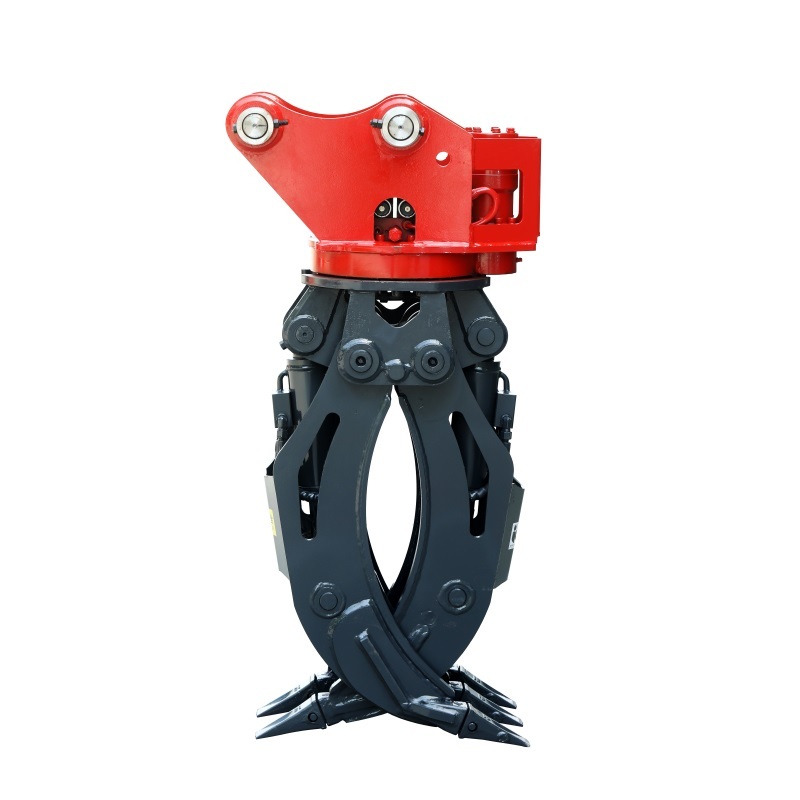

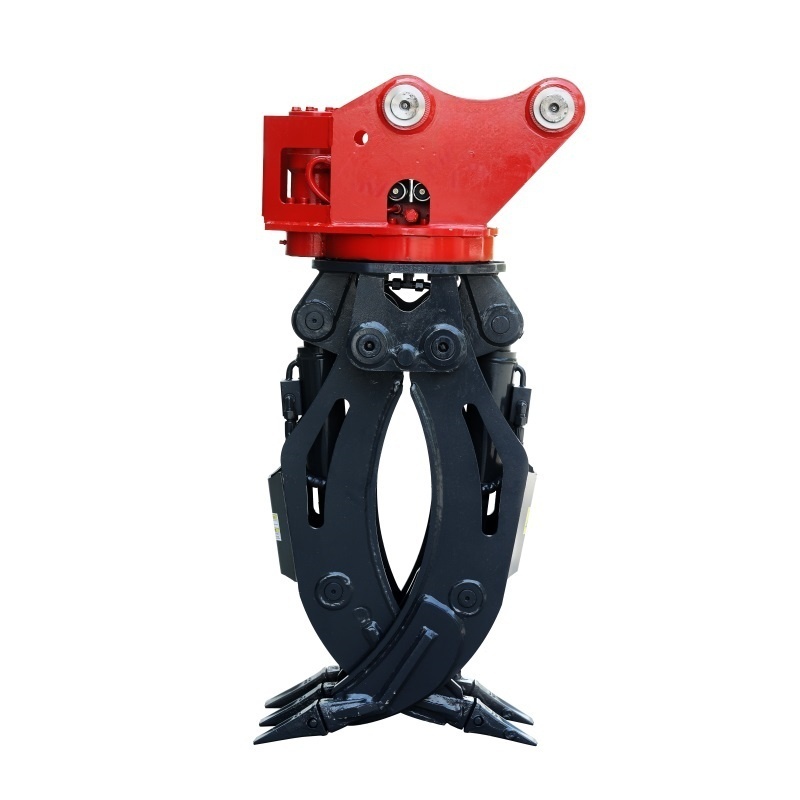

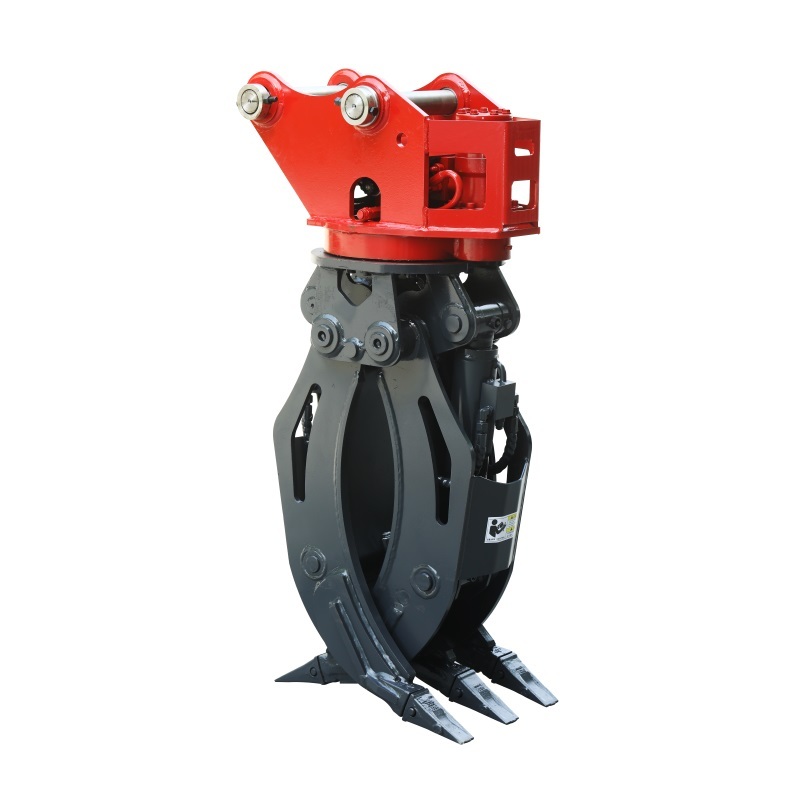

Hydraulic grapple is suitable for handling, palletizing and other operations of wood, timber, reed,straw and various strip materials in farm and forestry. Widely used in port, agriculture, garden and other fields.As actual manufacturer, we are able to offer a wide variety of grapples and spare parts to our customers with own advanced equipment and technology.

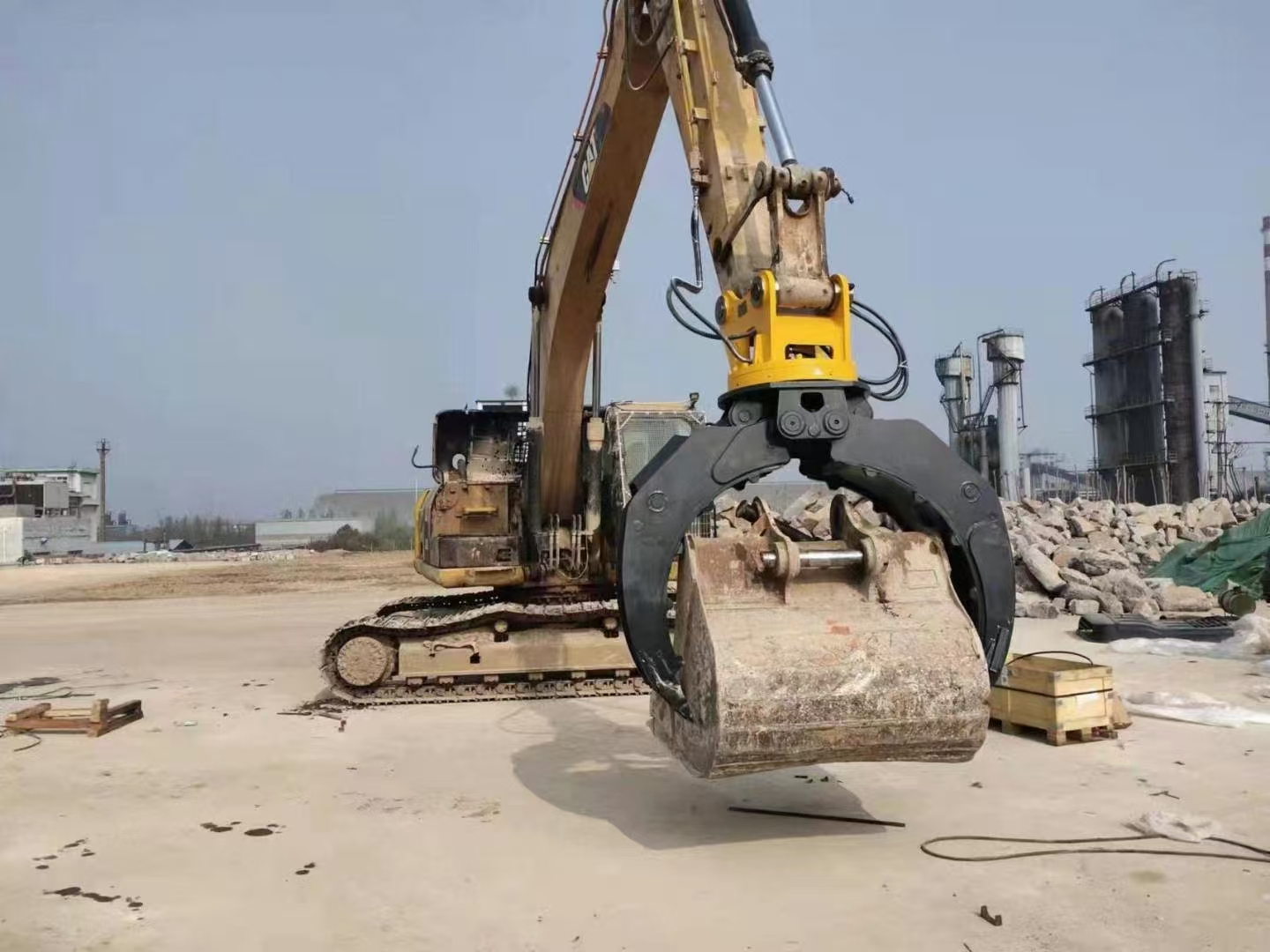

Hydraulic grapple is widely used for handling, loading and unloading materials, sugarcane, wood, stone, steel slag, grabbing garbage, scrap metal and other special operations.We provide customized rotating type and fixed type wood / stone grapple for 6ton-40ton excavator. The adapter will be customized according to the size of your excavator.
Besides our hydraulic grapples are a versatile tool for the selective demolition sorting and reclamation of varied materials. They are widely used in the demolition industry for primary stripping works and then subsequent clearance of sites, they are also a useful partner for the sorting and selection of skip and green waste and are used extensively at waste transfer and sorting yards.
360 degree hydraulic rotation makes it more flexible grabbing effect; Simple structure, light weight and high grasping force;The connecting rod ensures the synchronization of two grabs; The built-in balancing valve of the oil cylinder makes the operation smooth and maintains clamping force,thus providing higher safety.
How to choose the grapple model?
1.What is your excavator model or tonnage?
2.What material do you want to grab? Stone, wood, rubbish or something else?
| Item | PA60MMY | PA150MMY | PA200MMY | PA300MMY |
| Extemal diamensions（mm） | 1385*786 | 1870*1318 | 2440*1255 | 2480*1225 |
| Opening jaw(mm) | 1296 | 1750 | 2250 | 2300 |
| Grasping weight(kg) | 800 | 1000 | 2000 | 2500 |
| Rotating flow (L/min) | 25-35 | 30-40 | 30-40 | 30-40 |
| Rotating pressure(kg/c㎡) | 80-120 | 90-120 | 100-130 | 100-130 |
| Operating flow(L/min) | 30-50 | 80-140 | 100-150 | 100-150 |
| Operating pressure(kg/c㎡) | 160-220 | 180-220 | 180-220 | 180-220 |
| Weight(kg) | 430 | 680 | 1600 | 1600 |
| Suitable excavator(T) | 5-8 | 11-18 | 20-26 | 24-36 |
Product features:
1. High quality material(Q355B)provide high steel toughness and good abrasive resistance
2. Imported Motor with balance valve,have buffer and brake function
3. The cylinder is equipped with non-return valve,provide good reliability and safety
4. High strength rotate support device.Operator can control the speed for 360degree clockwise rotation or anti-clockwise rotation.
5. large open dimension,light weight with excellent performance
6. Using specially customized rotating gear to lengthen the product lifetime and reduce maintenance cost.
7. Can be fixed type(without rotating device)and we do customization
7. Are you a manufacturer?
* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
