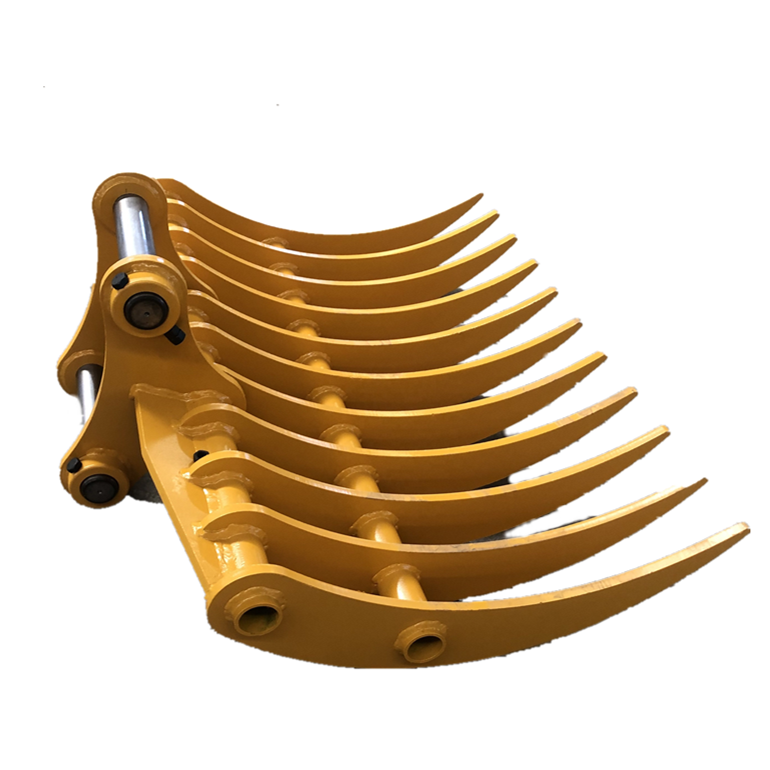

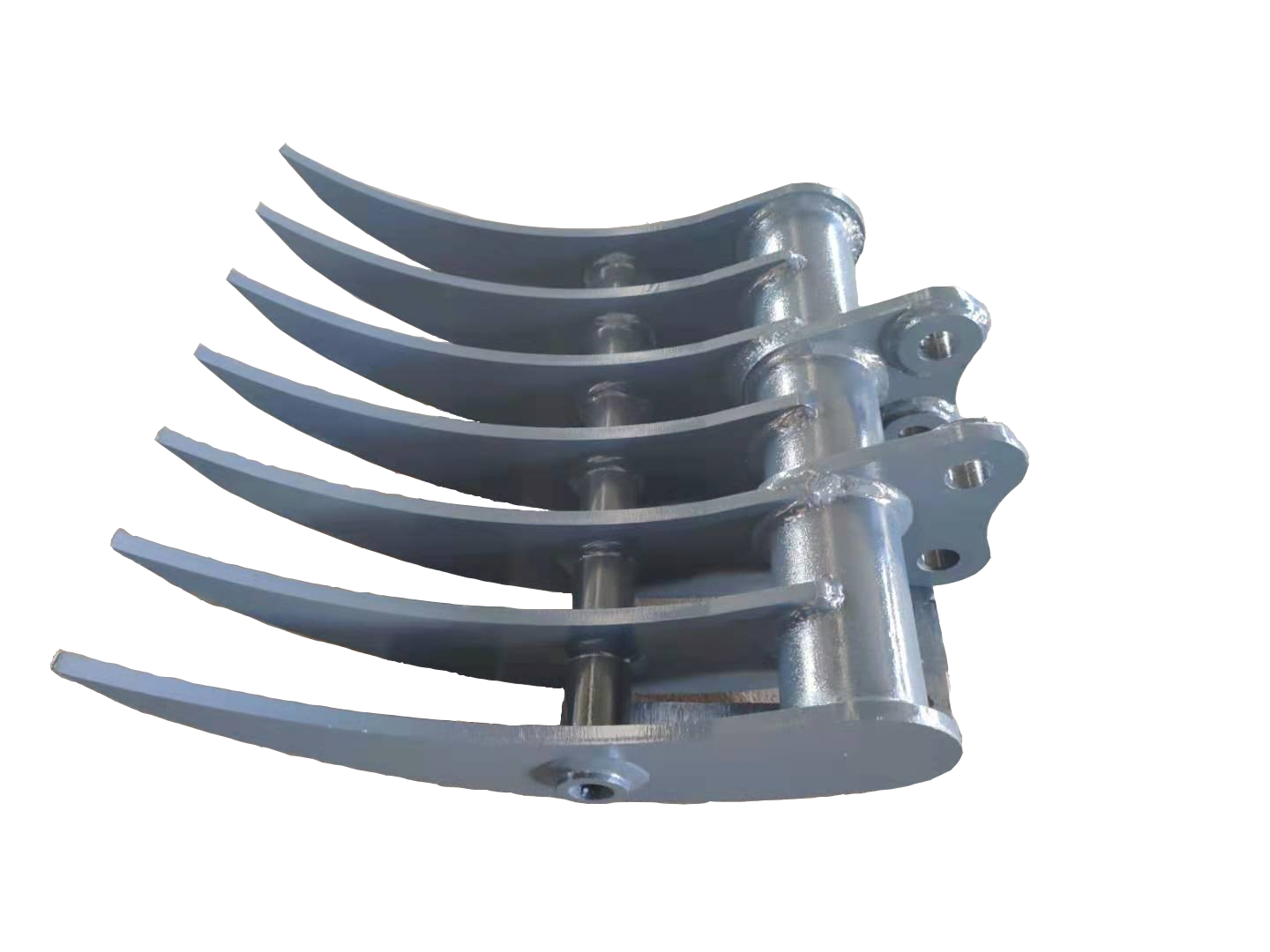

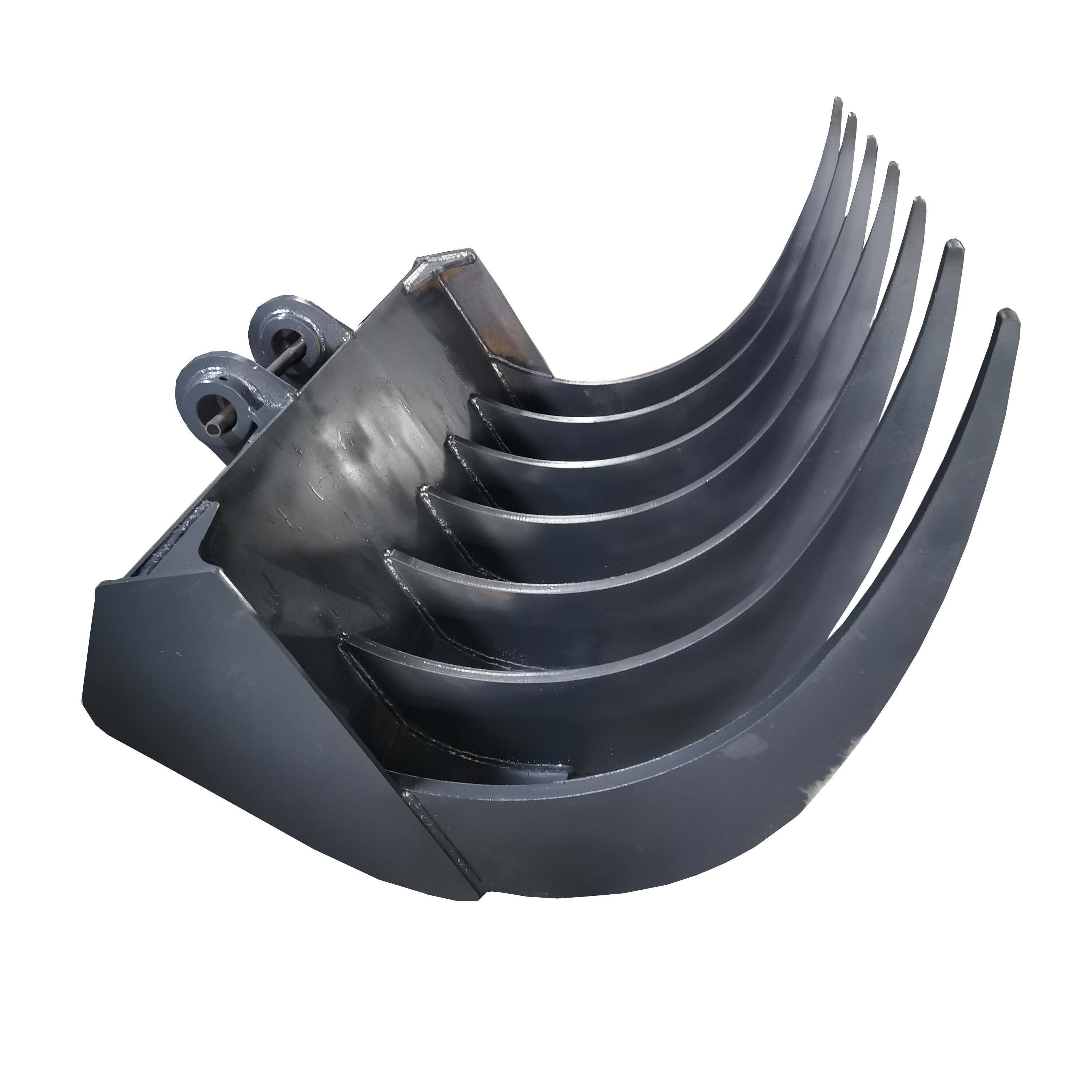

Excavator Rake, It’s an attachment with teeth on the front side for sweeping long or bulky debris left on the ground. It’s for 1 to 50 tons under most circumstances, but we could make it larger to fit customers’ s require.

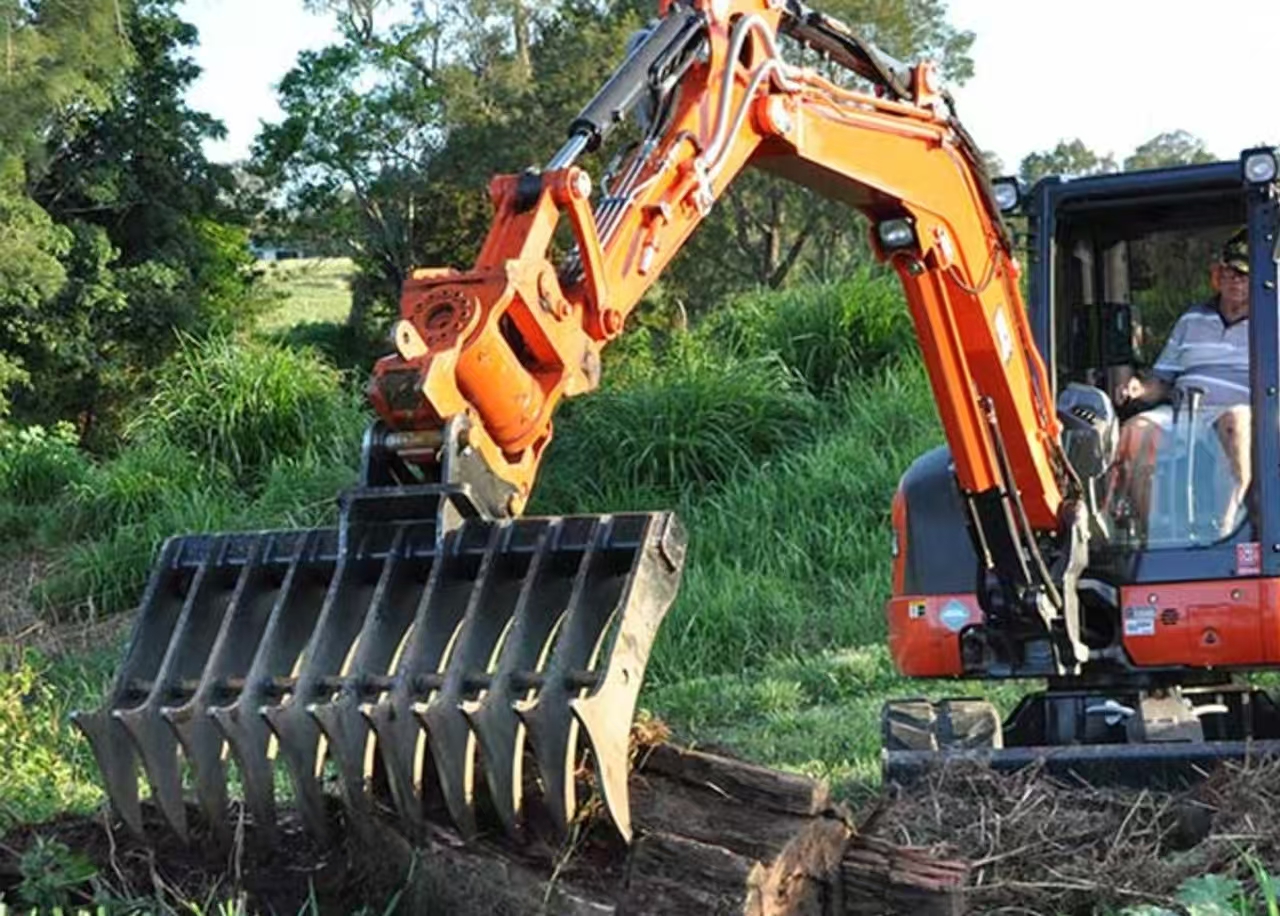

It could function best in pushing and flattening the materials left on the ground. Based on this work, it suits anywhere where requires sweeping and clearing ability. Once all the projects are done, nothing suits clearing the ground more than a rake.
Excavator Rake is a robust and versatile attachment designed for efficient soil loosening, grading, debris clearing, and land preparation. Compatible with excavators ranging from 5 to 20 tons, this rake ensures superior performance in construction, landscaping, agriculture, and demolition projects. Its durable steel construction and optimized tine spacing allow for smooth material separation while minimizing damage to underground utilities.
Due to the special design which looks like a rake, excavator rake (aka root rake) is mainly used in forestry and agriculture. Used to separate debris or heavier material from the soil. It has been proved to be invaluable to landscapers in the preparation of lawns for reseeding.
Applications:
* Landscaping – Leveling soil, removing roots, and preparing ground for planting.
* Construction – Grading, debris removal, and site cleanup.
* Demolition – Sorting and separating materials from rubble.
* Agriculture – Field preparation, stone picking, and compost spreading.
| Size | Model | Width(mm) | Number of Tine | Distance between tines(mm) | Thickness of tine(mm) | Weight(kgs) |
| 1-3T | PA10 | 700 | 6 | 125 | 12 | 72 |
| 3T | PA30 | 850 | 7 | 123 | 16 | 118 |
| 1000 | 8 | 125 | 16 | 136 | ||
| 5T | PA50 | 1000 | 8 | 125 | 16 | 150 |
| 1200 | 9 | 132 | 16 | 176 | ||
| 8-12T | PA80 | 1500 | 9 | 165 | 20 | 266 |
| 1800 | 11 | 158 | 20 | 305 | ||
| 12-15T | PA120 | 1800 | 10 | 172 | 25 | 558 |
| 1800 | 11 | 152 | 25 | 587 | ||
| 20T | PA200 | 1600 | 11 | 127 | 30 | 780 |
| 2000 | 11 | 167 | 30 | 890 | ||
| 25T | PA250 | 2000 | 10 | 180 | 35 | 1010 |
| 30T | PA300 | 2200 | 10 | 200 | 40 | 1220 |
| 30-40T | PA400 | 2200 | 11 | 154 | 60 | 2439 |
Product features:
1.Use great quality material,teeth bottom reinforced,increase the use life.
2. Easy to install and easy to use.
3. Durable and calculated design resulting in efficient operation.
4. Made of top quality structural and high strength steel.
7. Are you a manufacturer?
* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
