The prefect design of the bucket is helpful efficient digging, filling and bucket breakout force, making our buckets are widely welcomed by contractors while guaranteeing quality and longevity.Manufactured to any width and bucket capacity as required by customer.High quality materials, ex Q345B, NM360/400, HARDOX450/500.OEM Standard Buckets.Strong and durable construction to withstand robust working conditions.

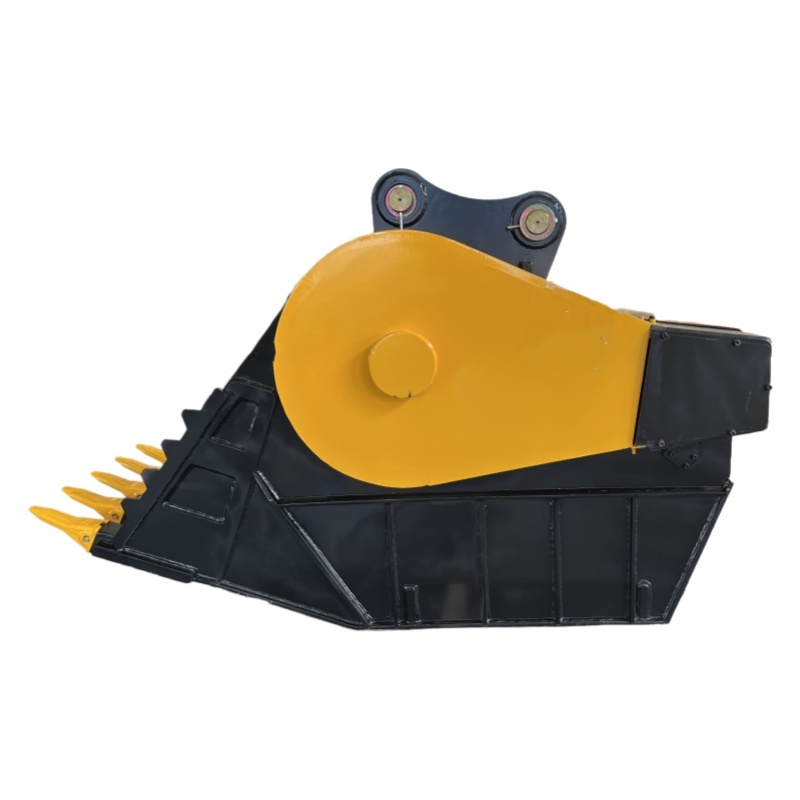

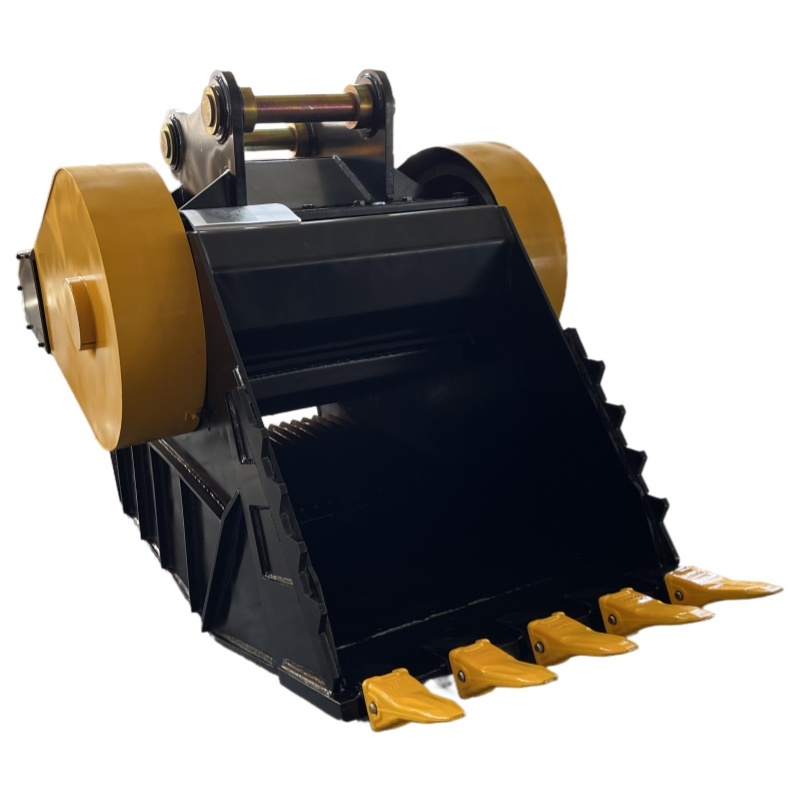

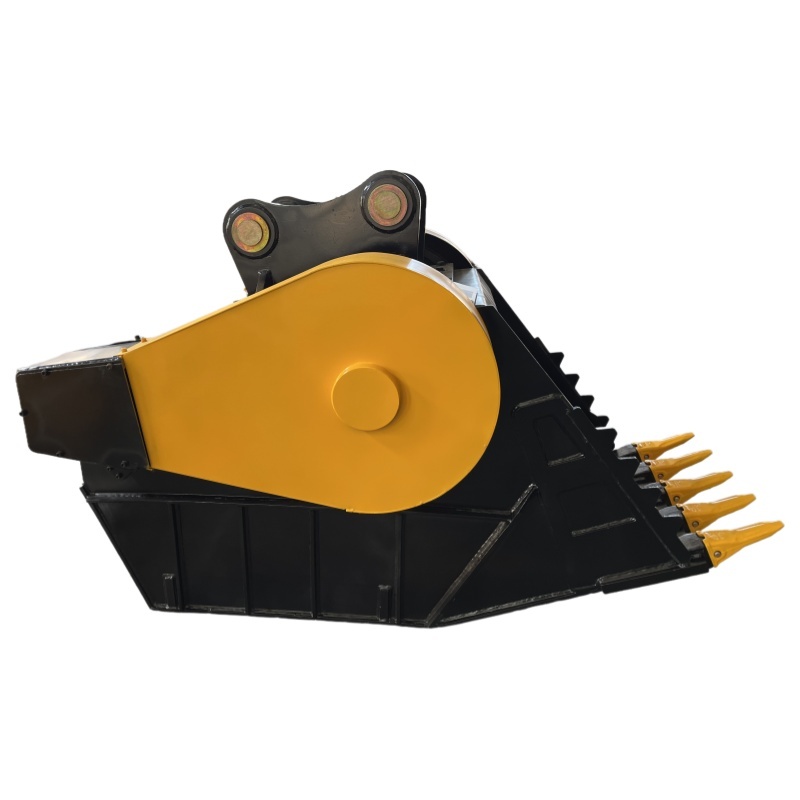

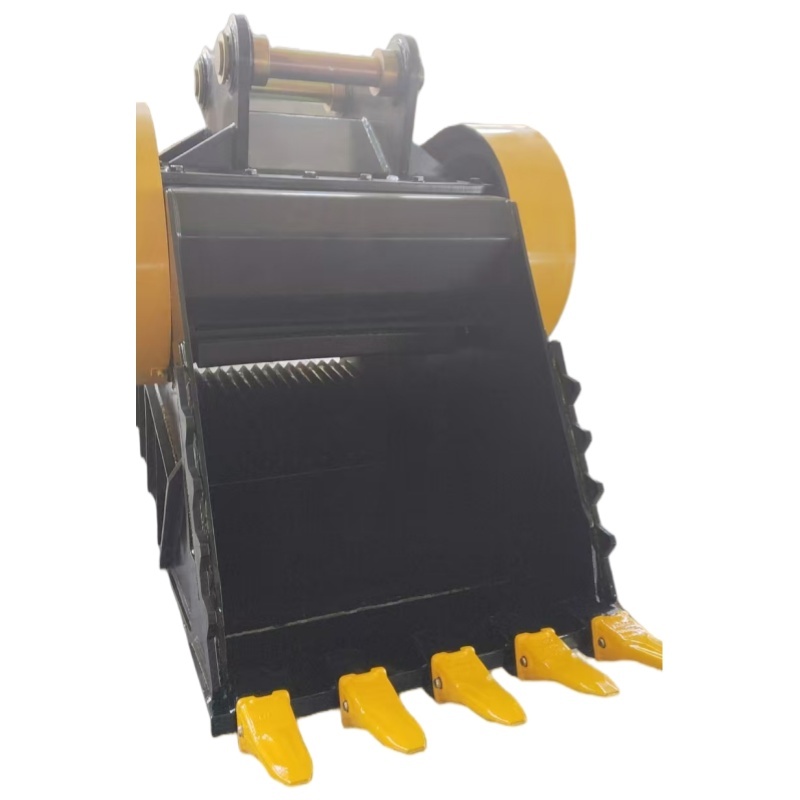

A bucket crusher or crusher bucket is a type of jaw crusher. it's an atached tool for excavators for built-in crushing construction waste and demolition materials. lt has the design of a shove which is open at the rear for releasing the shredded material. Compared to normal jaw crushers, the jaw crusher bucket has a lower production, but can be transported more easily and only needs an excavator to operate; Bucket crushers are primarily employed in mining and demolition for the breaking-down of crude minerals, concrete and masonry; Shell- made of Q355Mn steel and wear resistance material; Crushing plate- HARDOX Wear Plate, can crush hard material; ltaly original brand SAl motor, stable performance; Built in fly wheel replace belt, no maintenance cost; Discharge hole adjustable from 15mm-120mm,internal thickening structure more strong; Easily changeable crushing plate- screws fastened.
| Model | PA70 | PA120 | PA200 | PA300 | PA670 | PA870 |
| Excavator weight（t） | 6-8 | 12-15 | 18-30 | 30-40 | 50-70 | 75-90 |
| Bucket capacity（m³） | 0.16 | 0.45 | 0.74 | 1.15 | 1.47 | 2.23 |
| Oil flow（l/min） | 45-50 | 90-110 | 180-230 | 190-240 | 340-360 | 440-460 |
| Feeding size（mm） | 330*450 | 400*550 | 500*700 | 500*1000 | 670*1150 | 670*1315 |
| Whole size（mm） | 1585*900*1110 | 1895*1090*1420 | 2525*1325*1798 | 2353*1665*1576 | 2882*2105*2137 | 2882*2270*2137 |
| Overall weight（kg） | 800 | 1300 | 3350 | 4220 | 6850 | 7668 |
1）Reinforced Cutting Edge:
The cutting edge is reinforced for enhanced durability and improved penetration, making it well-suited for breaking and handling hard rock.
2）Optimized Bucket Shape:
The bucket's design is optimized to maximize material retention and facilitate efficient loading, ensuring effective rock handling with each scoop.
3）Wear-Resistant Design:
Incorporating wear-resistant components, the rock bucket minimizes wear and tear during continuous rock-handling operations, contributing to extended service life.
4）Quick Attachment and Operation:
Designed for quick and secure attachment to excavators, the rock bucket allows for efficient task-switching and streamlined workflow.
5）Compatibility with Excavator Models:
Engineered to be compatible with a range of excavator models, the rock bucket offers adaptability and ease of integration into existing equipment fleets.
6）Enhanced Tooth System:
Equipped with an enhanced tooth system, the bucket ensures effective penetration and breaking of rocks, optimizing overall rock-handling efficiency.
7. Are you a manufacturer?
* Yes,our factory was established in 2000 year in Yantai, Shandong. and we have ability to trading.
